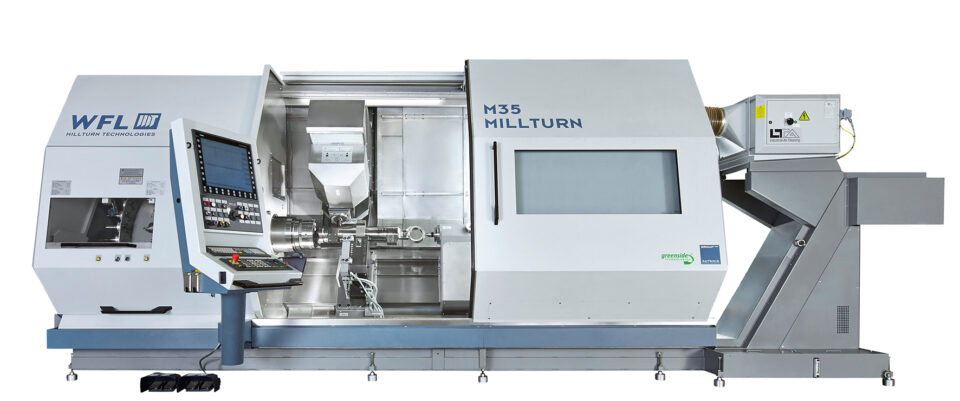

WFL M35, M35-G Millturn

Beskrivelse

WFL Millturn-serien fra M30 – M200 dekker de fleste behov.

For mer informasjon besøk produsentens nettside her

WFL er et Østerriksk maskinbyggerfirma med rundt 400 ansatte. Selskapet eksporterer 95 prosent av alle maskiner og disponerer 17.500 kvm produksjonsareal i byen Linz. Selskapets historie går tilbake til 1948 da Voest-Alpine etablerte eget maskinfirma for sitt stålverk.

Sammenligne
modeller

WFL M35

Additional information

Nominal center distance (mm)	2000
Swing - ø over Top slide (mm)	520
Max. Turning- ø between centers	520
Max. power, Turning spindle 40% (100%) duty cycle	33(29)/54(37)
Max. torque, Turning spindle 40% (100%) duty cycle	630(550)/1600(1100)
Max. spindle speed, Turning spindle	4000/3300
Max. power, Miling spindle 40% (100%) duty cycle	20(15)
Max. torque, Milling spindle 40% (100%) duty cycle	250(190)/165(125)/125(95)
Max. spindle speed, Milling spindle	6000/9000/12000
Swiveling angle B - axis	-110...+110
Travel Y - axis (mm)	250(-100...+150)
Travel X - axis (mm)	600(-20...+580)
Tailstock (type)	Mechatronic
Tool magazine (number)	40/80
Control SIEMENS (type)	SINUMERIK 840D sl

Sammenligne

Se Sammenlign

M35-G Millturn

Additional information

Nominal center distance (mm)	1800(1680)
Swing - ø over Top slide (mm)	520
Max. Turning- ø between centers	-
Max. power, Turning spindle 40% (100%) duty cycle	33(29)/54(37) // 33(29)
Max. torque, Turning spindle 40% (100%) duty cycle	630(550)/1600(1100) // 630(550)
Max. spindle speed, Turning spindle	4000/3300 // 4000
Max. power, Miling spindle 40% (100%) duty cycle	20(15)
Max. torque, Milling spindle 40% (100%) duty cycle	250(190)/165(125)/125(95)
Max. spindle speed, Milling spindle	6000/9000/12000
Swiveling angle B - axis	-110...+110
Travel Y - axis (mm)	250(-100...+150)
Travel X - axis (mm)	600(-20...+580)
Tailstock (type)	-
Tool magazine (number)	40/80
Control SIEMENS (type)	SINUMERIK 840D sl
