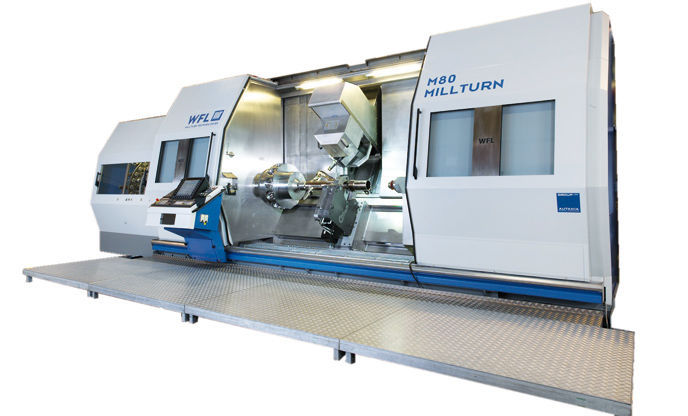

M80
Additional information
| Nominal center distance (mm) | 1000/2000/3000/4500/6000 mm |
|---|---|
| Swing - ø over Top slide (mm) | 1000 mm |
| Max. Turning- ø between centers | 1000/1000/1000/1000/980 |
| Max. power, Turning spindle 40% (100%) duty cycle | 56(40)/80(60) kW |
| Max. torque, Turning spindle 40% (100%) duty cycle | 3420(2440)/5860(4400) Nm |
| Max. spindle speed, Turning spindle | 2400/1600 min-1 |
| Max. power, Miling spindle 40% (100%) duty cycle | 58(45) kW |
| Max. torque, Milling spindle 40% (100%) duty cycle | 640(500)/400(310) Nm |
| Max. spindle speed, Milling spindle | 5000/8000 min-1 |
| Swiveling angle B - axis | 220(-110…+110) degree |
| Travel Y - axis (mm) | 650(-300…+350) mm |
| Travel X - axis (mm) | 900(-20…+880) mm |
| Tailstock (type) | Mechatronic |
| Tool magazine (number) | 36/72/108/200 * |
| Control SIEMENS (type) | SINUMERIK 840D sl |
